Stage and Fast Focus Controls

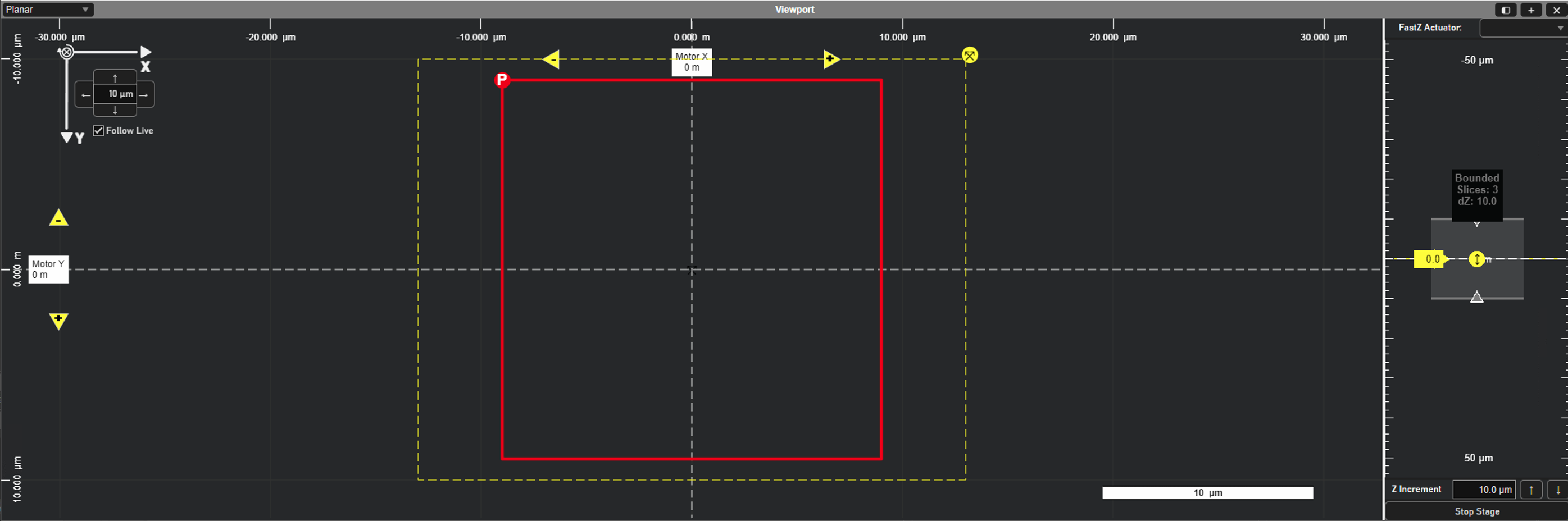

The stage and fast focus devices are controlled within the ScanImage Viewport.

../_images/viewport.png

Stage Controls

The stage can be moved in constant increments in X or Y using the yellow arrows.

../_images/motor-x-arrows.png

../_images/motor-y-arrows.png

Each click will move the stage by the number of microns specified in the top left controls:

../_images/stage-axes.png

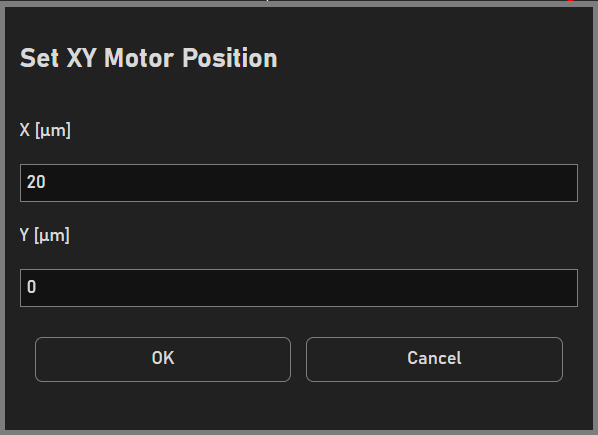

Clicking on the white Motor labels will raise a window to set the desired XY position:

../_images/set-xy-motor-position.png

ScanImage will automatically follow XY movements. To toggle this, uncheck ‘Follow Live’.

Note

Stages using the legacy driver will not have live position updating. To read the current position of the stage, click ‘Query Position’ in the Motor Controls window.

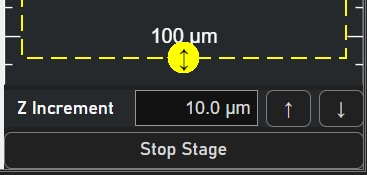

The stage can also be moved up and down in Z or be stopped within the ZView:

../_images/stage-controls-zview.png

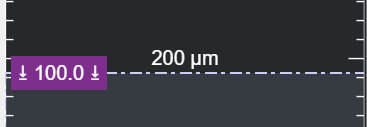

For safety and optimized control, the ZView uses motor limits that prevent the stage from moving beyond a set number of microns. These sliders can be adjusted as desired to restrict or free up stage movement from the Viewport.

../_images/motor-limits.png

Fast Focus Controls

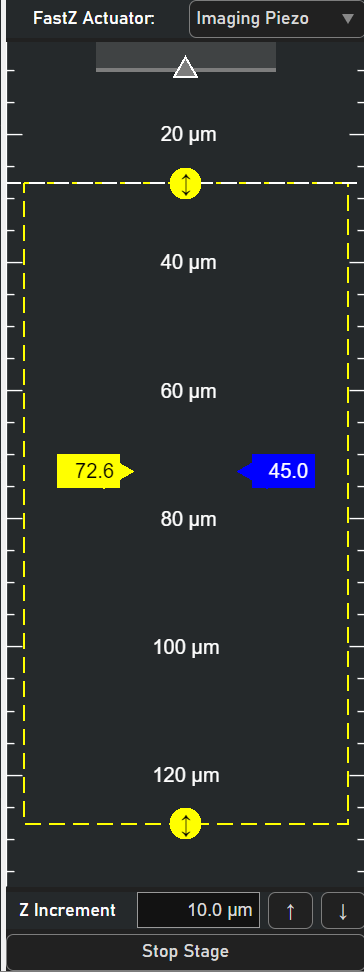

The current fast focus (fastZ) device can be selected via the dropdown in the ZView:

../_images/fast-z-zview.png

To move the fastZ, click and drag the blue Actuator Slider. Right click the slider to move the fastZ by a specified amount of microns.

The dashed-yellow box illustrates the full fastZ range and overall position in Z. The value in the Actuator Slider is the current depth of the fastZ in microns.

Click and drag the middle mouse button to pan the ZView.
