Stack Tab

The Stack Tab allows for the configuration of volume acquisition. Settable properties include the number of frames, the number of volumes, the type of actuator, and beam power at various depths.

Stack imaging can be toggled with the ‘Enable’ button at the top of the tab or from the Features GUI.

Related Documentation:

Example Video

Example video here (todo)

Keyboard Shortcuts

Note: keyboard shortcuts are used when hovering the mouse in the Z view of the viewport.

The keybinds for stacks are differentiated by each stack type (bounded or arbitrary). See the Stack Definition Panel for more information.

Bounded Stacks

Shortcut	Description
`t`	Sets the top of the stack at the Display Slider
`c`	Sets the middle of the stack at the Display Slider
`b`	Sets the bottom of the stack at the Display Slider
`Control` + `c`	Toggles centered stack
`Control` + `Page Up` or `Page Down`	Shifts the stack up or down 5 µm
`Control` + `↑` or `↓`	Shifts the stack up or down 0.5 µm
Click Top of Stack + `Control` + `Page Up` or `Page Down`	Grows or shrinks top of stack by increments of 5 µm
Click Top of Stack + `Control` + `↑` or `↓`	Grows or shrinks top of the stack by increments of 0.5 µm
Click Bottom of Stack + `Control` + `Page Up` or `Page Down`	Grows or shrinks bottom of stack by increments of 5 µm
Click Bottom of Stack + `Control` + `↑` or `↓`	Grows or Shrinks top of the stack by increments of 0.5 µm
Click Middle of Stack + `Control` + `Page Up` or `Page Down`	Grows or shrinks both sides of stack by increments of 5 µm
Click Middle of Stack + `Control` + `↑` or `↓`	Grows or Shrinks both sides of the stack by increments of 0.5 µm

Arbitrary Stacks

Shortcut	Description
`a`	Adds a new slice at the Display Slider as the last in the slice sequence
`shift` + `a`	Adds a new slice at the Display Slider as the first in the slice sequence
`Enter`	Set the slice depth sequence
`Page Up`	Shifts the stack up 5 µm
`Page Down`	Shifts the stack down 5 µm
`↑`	Shifts the stack up 1 µm
`↓`	Shifts the stack down 1 µm

Stack Definition Panel

Top Panel

Table Column	Description
Frames Per Slice	Number of frames to acquire at a given z-depth
Volumes Per Acquisition	Number of times to repeat the z-stack for one acquisition
Coordinate system	Select the desired coordinate system

There are two types of stacks: bounded and arbitrary. Bounded stacks are defined by a top and bottom depth and a set step size between slices. Arbitrary stacks allow for any set of Z depths.

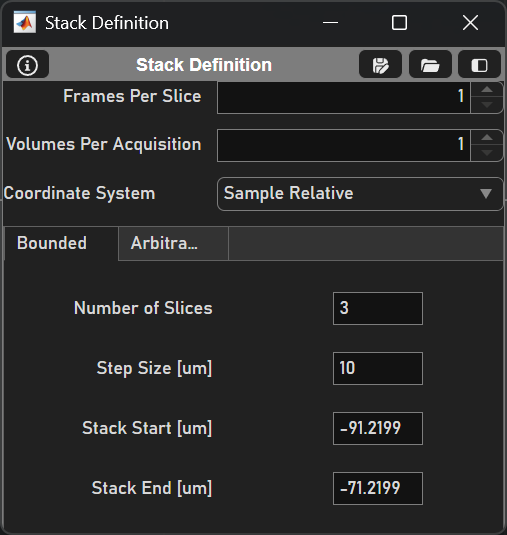

Bounded Tab

Configuration Options	Description
Number of Slices	Number of slices in the stack
Step Size (um)	Amount that the actuator will move between Zs
Stack Start (um)	Starting Z of the stack (relative to current Z)
Stack End (um)	Ending Z (relative to current Z)

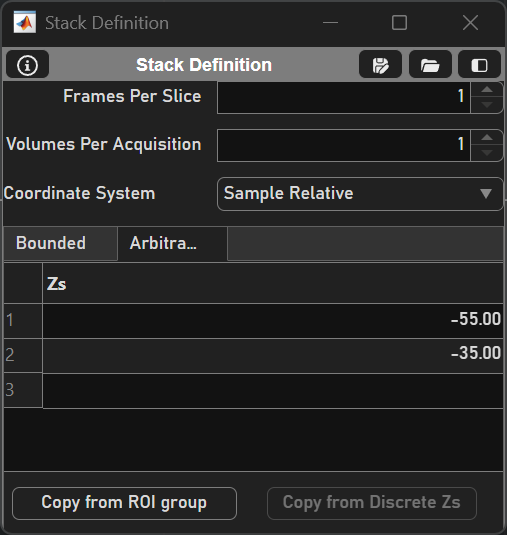

Arbitrary Tab

Configuration Options	Description
Z’s Table	Table to specify each desired Z
Copy from ROI Group	Adds each of the corresponding Z’s from each scanfield in the ROI group into the stack
Copy from discrete Z’s	Adds each of the discrete Z-depths from the FastZDiscrete device Note Copying from Discrete Z’s is enabled only if there is an active Viewport and the associated fastZ is a FastZDiscrete device

Stack Actuation Panel

The Stack Actuation Panel consists of the Slow and Fast tabs given the primary z actuator. A slow stack is designed for a slow actuator, as the acquisition is halted between each slice. See Stack Types for more.

Slow Tab

Table Column	Description
Actuator	Dropdown to select actuator that will be responsible for changing Zs in the stack acquisition
Return Home	Option for actuator to return to previous position at the end of the acquisition
Close Shutter between Slices	Option to close the shutter when the actuator is moving

Fast Tab

Element	Description
Waveform Type	Dropdown to select the type of voltage waveform to send to the fastZ device (sawtooth or step)
Return Home	Option for actuator to return to previous position at the end of the acquisition
Slice Transit Time (ms)	Duration from the end of acquisition of the last frame of the current slice to the start of acquisition of the first frame of the subsequent slice. This is the same as the Y-Galvo flyback time
Volume Flyback Time (ms)	The amount of time allocated for the z-actuator to return after a stack is completed
# Discard Frames	The number of frames that are acquired during the flyback time (dependent on the volume flyback time)
Actuator Lag (ms)	Amount of time to advance the playback of the waveform relative to acquisition to account for actuator lag
Volume Rate [Hz]	The frequency at which volumes are acquired

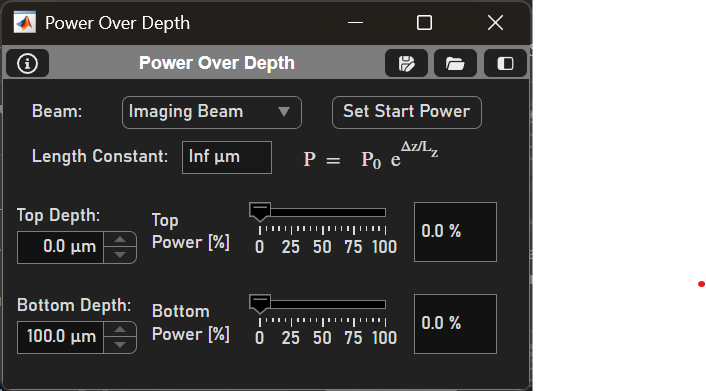

Power over Depth Panel

The power of the beam can be changed as the focal plane increases in Z.

Element	Description
Beam	Select desired beam
Set Start Power	Uses the formula \(P = P_0 \cdot e^{\frac{\Delta z}{L_z}}\) where \(Z_0\) = Z at start of stack acquisition \(Z\) = Current Z during acquisition \(\Delta z\) = \(Z\) - \(Z_0\) (change in Z is current depth minus top depth) \(P\) = Power at \(Z\) \(P_0\) = Power at start of stack acquisition (at \(Z_0\)) \(L_z\) = Length Constant to set the power of the current beam
Top / Bottom Depth	Set the top and bottom Zs where the power will be modulated
Top / Bottom Power [%]	Set the desired power at the top and bottom Zs. This can be done via the slider or the textbox. Then, select the Set Start Power button

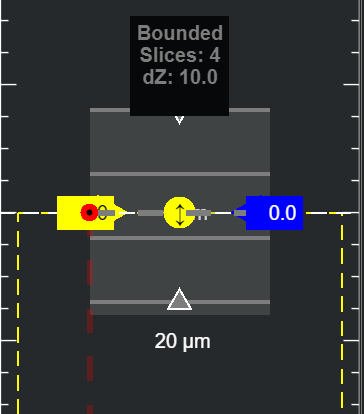

Note that the depth and power of the beam can also be updated via the GUI in the Viewport’s ZView.
